Plasma Air 600 & 660 Series
For commercial applications, the Plasma Air 600 and 660 Series provide safe and continuous air purification to the entire commercial environment using patented brush-style bipolar ionization technology. The unit installs in just minutes and requires minimal maintenance.

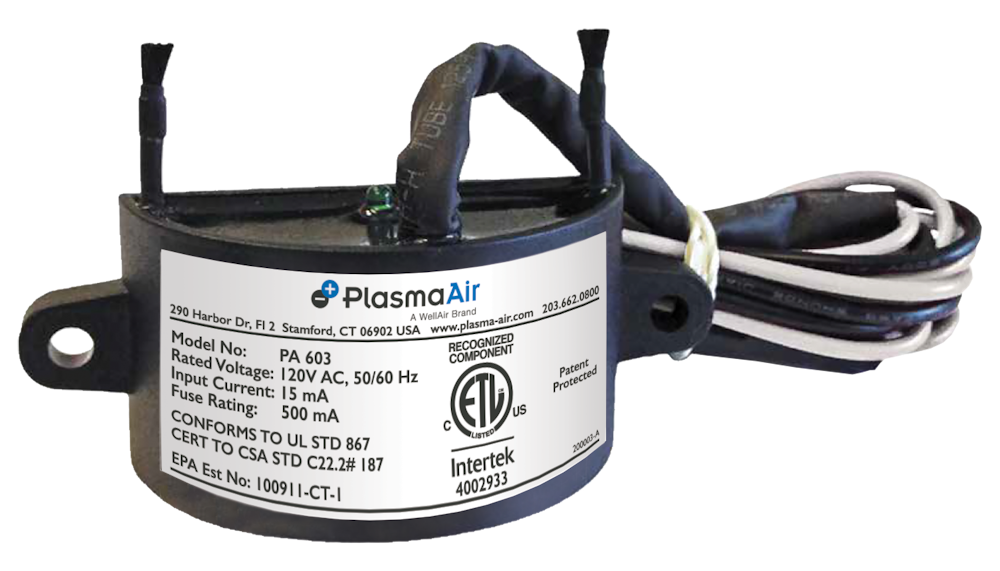

The Plasma Air 600 and 660 Series ionizers produce positive and negative oxygen ions neutralizing harmful pollutants and odors. This highly versatile, self-balancing ionizer is typically installed at the fan inlet of an air handling unit, VRF cassettes, ductless splits, WSHP, etc. These ionizers are self-contained in a potted ABS box with a molded flange and mounting holes and are protected with an inline 500mA glass cartridge fuse.
Models available for 12VDC, 24V AC/DC, 120VAC, and 208-240VAC without an external power supply. The unit is protected with an in-line 500mA glass cartridge fuse. Each ionization unit is rated up to 6 tons (2,400 CFM).
The 660 series includes dry contacts, which indicate ionizer functionality to a BAS (Building Automation System).
Proven to reduce and neutralize:
Learn more about our research and testing.
The 600 and 660 Series are UL 2998 validated for zero ozone emissions.
Commonly used in:
Product Specifications
Airflow Capacity:
2,400 CFM
Power Consumption:
Less than 1 watt
Mode of Operation:
Brush, Needlepoint Type
Voltage Input (601 model):
12V DC
Compliance:
UL 867, CSA C22.2# 187, UL 2998, UL 2043, CARB, ISO 16000
Voltage Input (602 model):
24V AC/DC
Weight:
0.2 lb
Voltage Input (603 model):
120V AC
Dimensions:
3.125" × 2.75" × 1"
Voltage Input (604 model):
208 - 240V
