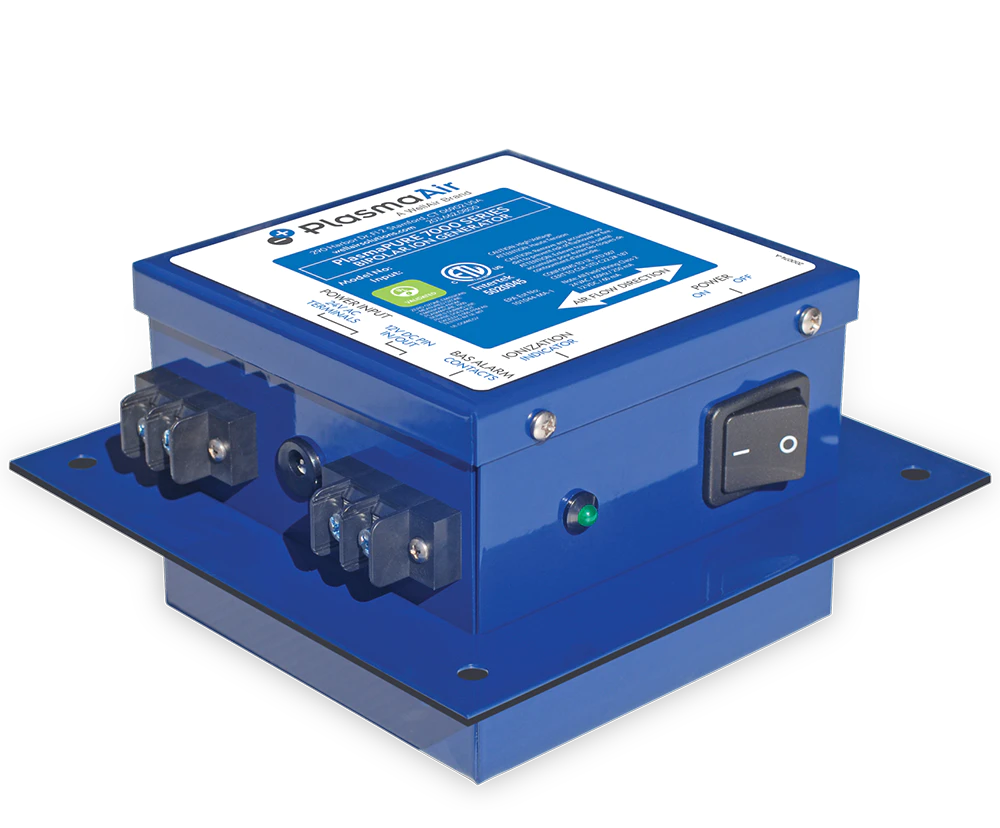

PlasmaPURE 7000 Series
For light commercial and residential applications, the PlasmaPURE 7000 Series provides safe and continuous air purification to the entire building or home. It uses patented needlepoint soft ionization, also known as bipolar ionization, technology that produces positively and negatively charged ions to reduce and neutralize harmful pathogens, pollutants, and odors.
Models are available for various voltage capacities (see below). The unit is typically installed by an HVAC professional in the supply duct utilizing the pre-drilled flange and factory-applied gasket. It can also be installed inside an HVAC unit utilizing a contractor-supplied mounting bracket.
Proven to reduce and neutralize:
Learn more about our research and testing.
The PlasmaPURE 7000 Series is UL 2998 validated for zero ozone emissions.
Product Specifications
Airflow Capacity (71XX):
Up to 1,400 CFM
Voltage Input (7XX1):
24V AC
Airflow Capacity (72XX):
1,401 to 2,800 CFM
Voltage Input (7XX2):
120V AC wall pack
Airflow Capacity (73XX):
2,801 to 4,200 CFM
Voltage Input (7XX3):
120V/240V AC power supply
Airflow Capacity (74XX):
4,201 to 6,000 CFM
Voltage Input (7XX4):
277V AC - 12V DC power supply
Compliance:
UL2998, Intertek/ETL Standard UL 867
Mode of Operation:
Recessed, Needlepoint Type
Power Consumption:
Less than 2VA per set of outputs
BAS Monitoring:
Dry contact terminals
Weight:
2.0 lb
Dimensions:
6.5" × 6.5" × 3.5"
